| Mã đặt hàng |
Model |
Lớp mạ |
IC |
l |
r |
s |
| |
|
|
mm |
mm |
mm |
mm |
| 302500.0050 |
DCMX070204-WF |
1525 |
6.35 |
7 |
0.4 |
2.38 |
| 302500.0150 |
DCMX070204-WF |
4215 |
6.35 |
7 |
0.4 |
2.38 |
| 302500.0200 |
DCMX070204-WF |
2015 |
6.35 |
7 |
0.4 |
2.38 |
| 302500.0351 |
DCMX11T304-WF |
4315 |
9.52 |
11 |
0.4 |
3.97 |
| 302500.0400 |
DCMX11T304-WF |
2015 |
9.52 |
11 |
0.4 |
3.97 |
| 302500.0551 |
DCMX11T308-WF |
4315 |
9.52 |
11 |
0.8 |
3.97 |
| 302500.0600 |
DCMX11T308-WF |
2015 |
9.52 |
11 |
0.8 |
3.97 |

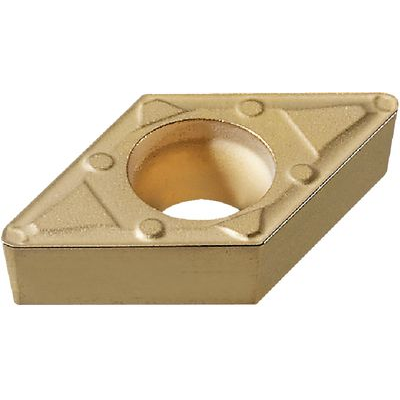

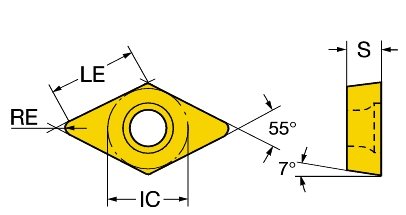

302500 - Indexable insert DCMX-Wiper CoroTurn 107
Single-sided, rhombic 55°.
Geometries
• W (wiper, perfect surfaces)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 2015: fiish machining and light rough machining of stainless steel
• 4215: fiishing/rough machining of steel/cast steel
Appropriate tool holders:
300420 Tool holder SDJCR/L CoroTurn 107
301320 Boring bar SDUCR/L CoroTurn 107
301340 Carbide boring bar SDUCR CoroTurn 107
