| Mã đặt hàng | Model | Lớp mạ | iC | l | r | s |
| mm | mm | mm | mm | |||
| 302660.0100 | TCGT090204-UM | 5015 | 5.56 | 9 | 0.4 | 2.38 |
| 302660.0200 | TCGT110201-UM | 5015 | 6.35 | 11 | 0.1 | 2.38 |
| 302660.0300 | TCGT110202-UM | 5015 | 6.35 | 11 | 0.2 | 2.38 |
| 302660.0400 | TCGT110302-UM | 5015 | 6.35 | 11 | 0.2 | 3.18 |
| 302660.0505 | TCGT110204-UM | 1125 | 6.35 | 11 | 0.4 | 2.38 |
| 302660.0600 | TCGT110304-UM | 5015 | 6.35 | 11 | 0.4 | 3.18 |
| 302660.0700 | TCGT110208-UM | 5015 | 6.35 | 11 | 0.8 | 2.38 |
| 302660.0805 | TCGT110208-UM | 1125 | 6.35 | 11 | 0.8 | 2.38 |
| 302660.0900 | TCGT16T304-UM | 5015 | 9.52 | 16 | 0.4 | 3.97 |

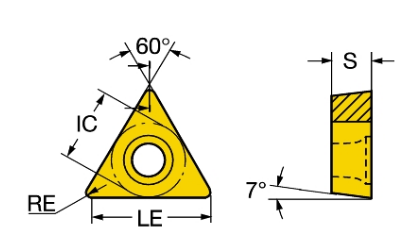

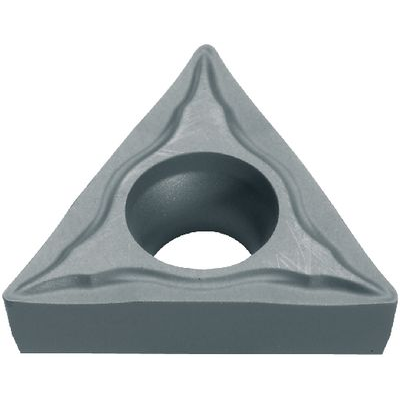

302660 - Indexable insert TCGT CoroTurn 107
Single-sided, triangular, ground.
Geometries
• U (universal)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 1125: fiish machining of stainless steel
• 5015: uncoated Cermet, fiish machining of low- and high-alloy steel
Appropriate tool holders:
300480 Tool holder STGCR CoroTurn 107
301360 Boring bar STFCR CoroTurn 107
301380 Boring bar STFCR CoroTurn 107
301400 Carbide boring bar STFCR CoroTurn 107
