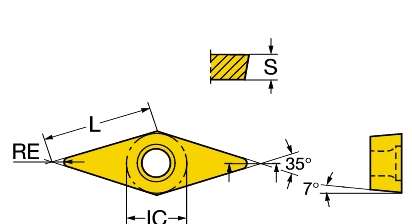

| Mã đặt hàng | Model | Lớp mạ | iC | l | r | s |
| mm | mm | mm | mm | |||
| 302740.0100 | VCGX110202-AL | H10 | 6.35 | 11 | 0.2 | 2.38 |
| 302740.0200 | VCGX110204-AL | H10 | 6.35 | 11 | 0.4 | 2.38 |
| 302740.0300 | VCGX110302-AL | H10 | 6.35 | 11 | 0.2 | 3.18 |
| 302740.0400 | VCGX110304-AL | H10 | 6.35 | 11 | 0.4 | 3.18 |
| 302740.0500 | VCGX160404-AL | H10 | 9.52 | 16 | 0.4 | 4.76 |
| 302740.0600 | VCGX160408-AL | H10 | 9.52 | 16 | 0.8 | 4.76 |
| 302740.0700 | VCGX160412-AL | H10 | 9.52 | 16 | 1.2 | 4.76 |

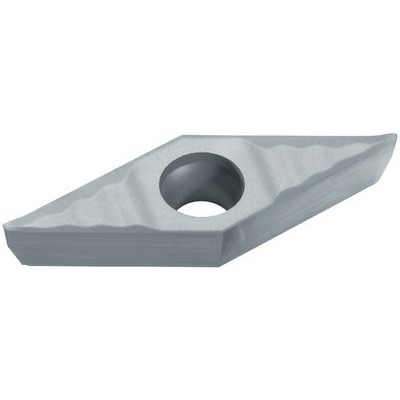

302740 - Indexable insert VCGX-AL CoroTurn 107
Single-sided, rhombic 35°, ground.
Geometries
• AL (Al)
Types
• H10: Uncoated, fie grained; outstanding cutting edge sharpness; for Al.
Appropriate tool holders:
300500 Tool holder SVHBR/L CoroTurn 107
300520 Tool holder SVJBR/L CoroTurn 107
300540 Tool holder SVVBN CoroTurn 107
300780 Tool holder SVABR CoroTurn 107 For precision machining
