| Mã đặt hàng |
Model |
Lớp mạ |
iC |
l |
r |
s |
| |
|
mm |
mm |
mm |
mm |
|
| 302540.0100 |
DCGX070202-AL |
H10 |
6.35 |
7 |
0.2 |
2.38 |
| 302540.0200 |
DCGX070204-AL |
H10 |
6.35 |
7 |
0.4 |
2.38 |
| 302540.0300 |
DCGX11T302-AL |
H10 |
9.52 |
11 |
0.2 |
3.97 |
| 302540.0400 |
DCGX11T304-AL |
H10 |
9.52 |
11 |
0.4 |
3.97 |
| 302540.0500 |
DCGX11T308-AL |
H10 |
9.52 |
11 |
0.8 |
3.97 |

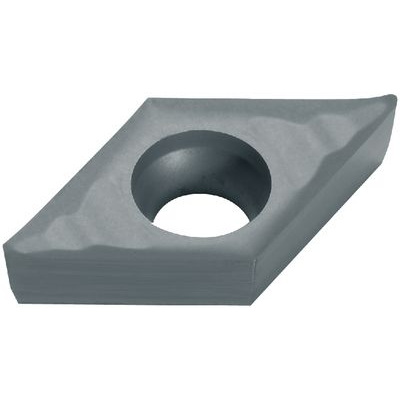

302540 - Indexable insert DCGX-AL CoroTurn 107

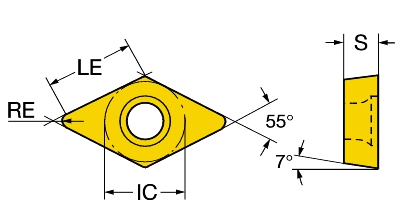

Single-sided, rhombic 55°, ground.
Geometries
• AL (Al)
Types
• H10: Uncoated, fie grained; outstanding cutting edge sharpness; for Al.
Appropriate tool holders:
300420 Tool holder SDJCR/L CoroTurn 107
301320 Boring bar SDUCR/L CoroTurn 107
301340 Carbide boring bar SDUCR CoroTurn 107
