| Mã đặt hàng |
Model |
Lớp mạ |
IC |
l |
r |
s |
| |
|
|
|
mm |
mm |
mm |
| 302520.0100 |
DCGT070204-UM |
5015 |
6.35 |
7 |
0.4 |
2.38 |
| 302520.0200 |
DCGT070204-UM |
1025 |
6.35 |
7 |
0.4 |
2.38 |
| 302520.0350 |
DCGT070208-UM |
1515 |
6.35 |
7 |
0.8 |
2.38 |
| 302520.0401 |
DCGT070208-UM |
1125 |
6.35 |
7 |
0.8 |
2.38 |
| 302520.0500 |
DCGT11T301-UM |
5015 |
9.52 |
11 |
0.1 |
3.97 |
| 302520.0600 |
DCGT11T302-UM |
5015 |
9.52 |
11 |
0.2 |
3.97 |
| 302520.0700 |
DCGT11T304-UM |
5015 |
9.52 |
11 |
0.4 |
3.97 |
| 302520.0800 |
DCGT11T304-UM |
1025 |
9.52 |
11 |
0.4 |
3.97 |
| 302520.0900 |
DCGT11T308-UM |
5015 |
9.52 |
11 |
0.8 |
3.97 |
| 302520.1000 |
DCGT11T308-UM |
1025 |
9.52 |
11 |
0.8 |
3.97 |
302520 - Indexable insert DCGT CoroTurn 107

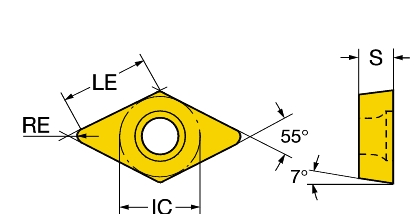

Single-sided, rhombic 55°, ground.
Geometries
• U (universal)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 1025: fiish machining of stainless steel
• 5015: uncoated Cermet, fiish machining of low- and high-alloy steel
Appropriate tool holders:
300420 Tool holder SDJCR/L CoroTurn 107
301320 Boring bar SDUCR/L CoroTurn 107
301340 Carbide boring bar SDUCR CoroTurn 107
Catalog
Dowload catalog
