| Mã đặt hàng |
Model |
Lớp mạ |
IC |
l |
r |
s |
| |
|
|
mm |
mm |
mm |
mm |
| 302420.0150 |
CCMT060204-WF |
4215 |
6.35 |
6 |
0.4 |
2.38 |
| 302420.0200 |
CCMT060204-WF |
2015 |
6.35 |
6 |
0.4 |
2.38 |
| 302420.0350 |
CCMT09T304-WF |
4215 |
9.52 |
9 |
0.4 |
3.97 |
| 302420.0400 |
CCMT09T304-WF |
2015 |
9.52 |
9 |
0.4 |
3.97 |
| 302420.0550 |
CCMT09T304-WM |
4215 |
9.52 |
9 |
0.4 |
3.97 |
| 302420.0600 |
CCMT09T304-WM |
2015 |
9.52 |
9 |
0.4 |
3.97 |
| 302420.0751 |
CCMT09T308-WM |
4315 |
9.52 |
9 |
0.8 |
3.97 |
| 302420.0800 |
CCMT09T308-WM |
2015 |
9.52 |
9 |
0.8 |
3.97 |
| 302420.0950 |
CCMT120404-WM |
4215 |
12.7 |
12 |
0.4 |
4.76 |
| 302420.1000 |
CCMT120404-WM |
2015 |
12.7 |
12 |
0.4 |
4.76 |
| 302420.1150 |
CCMT120408-WM |
4215 |
12.7 |
12 |
0.8 |
4.76 |
| 302420.1200 |
CCMT120408-WM |
2015 |
12.7 |
12 |
0.8 |
4.76 |

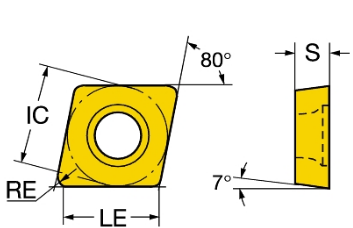

302420 - Indexable insert CCMT-Wiper CoroTurn 107
Single-sided, rhombic 80°.
Geometries
• W (wiper, perfect surfaces)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 2015: fiish machining and light rough machining of stainless steel
• 4215: fiishing/rough machining of steel/cast steel
Appropriate tool holders:
300400 Tool holder SCLCR/L CoroTurn 107
301300 Boring bar SCLCR/L CoroTurn 107
