| Mã đặt hàng |
Model |
Lớp mạ |
iC |
l |
r |
s |
| |
|
|
mm |
mm |
mm |
mm |
| 302440.0100 |
CCGT060204-UM |
5015 |
6.35 |
6 |
0.4 |
2.38 |
| 302440.0200 |
CCGT09T301-UM |
5015 |
9.52 |
9 |
0.1 |
3.97 |
| 302440.0300 |
CCGT09T302-UM |
5015 |
9.52 |
9 |
0.2 |
3.97 |
| 302440.0400 |
CCGT09T304-UM |
5015 |
9.52 |
9 |
0.4 |
3.97 |
| 302440.0500 |
CCGT09T304-UM |
1025 |
9.52 |
9 |
0.4 |
3.97 |
| 302440.0600 |
CCGT09T308-UM |
5015 |
9.52 |
9 |
0.8 |
3.97 |

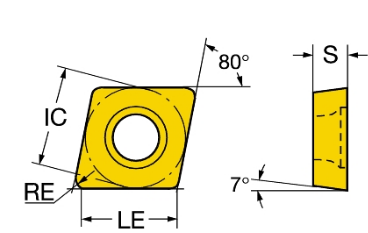

302440 - Indexable insert CCGT CoroTurn 107
Single-sided, rhombic 80°, ground.
Geometries
• U (universal)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 1025: fiish machining of stainless steel
• 5015: uncoated Cermet, fiish machining of low- and high-alloy steel
