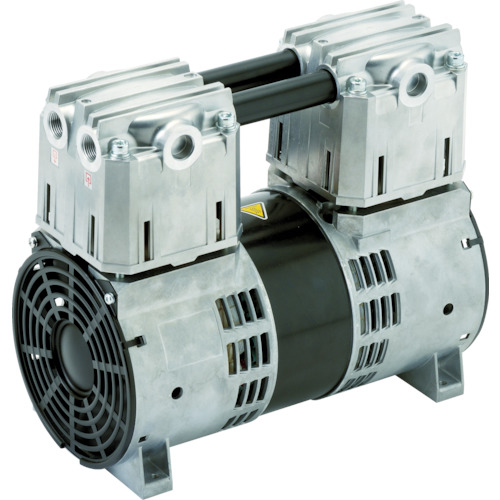

- This is a dry type vacuum pump that does not use oil or water in the gas contact areas.
- It has a large displacement and a compact size.
- It can operate from atmospheric pressure.
- Vacuum suction transport for automated machines, etc.
- Vacuum packaging and printing machinery.
- Suction machine.
- Chip mounter.
Specifications in detail
Single stage exhaust system
CE self-declared product
TUV certified product
cTUVus certified product
Different voltages available (please contact us)
Exhaust speed (L/min) 50/60Hz: 180/200
Ultimate pressure (Pa): 10.0 x 10 (to the power of 3)
Intake diameter (mm): Rc3/8
Power supply (V): Single phase 220
Overall width (mm): 162
Total length (mm): 266
Height (mm): 235
Dimensions (mm): 162 x 266 x 235
ULVAC DOP-181SD
