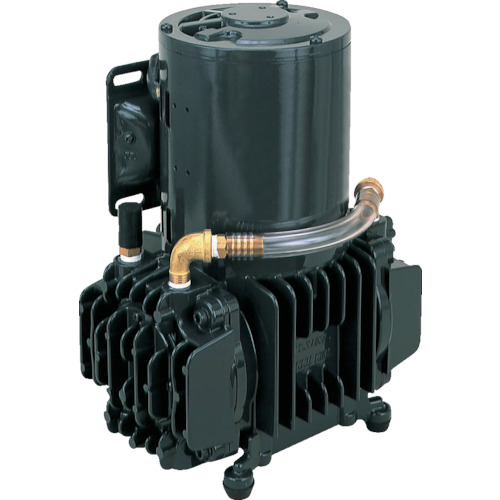

- This is a vacuum pump that uses the reciprocating motion of a thin rubber membrane (diaphragm) to evacuate air.
- This is a dry vacuum pump that does not use oil or water in the gas contact parts. A thermal protector is built in for safety.
- The simple structure makes maintenance easy.
- Suction transport, suction fixation, vacuum tweezers.
- Analytical equipment, scientific and chemical equipment.
- Semiconductor inspection equipment.
- Device assembly.
- Automatic machines, packaging machines.
Specifications in detail
Supports different voltages from a single unit (excluding DAL-181D/DAL-361S)
Ultimate pressure (KPa): 3.3
Intake and exhaust pipe diameter (mm): ODφ12 x IDφ8 (Rc1/4)
Maximum dimensions (mm): 150 (W) x 232 (L) x 305 (H)
Motor lead wire with crimp terminal (power cord not included)
Exhaust speed (L/min) 50/60Hz: 50/55
Ultimate pressure (Pa): 3.3 x 10 (to the power of 3)
Intake diameter (mm): 12
Power supply (V): Single phase 100
Overall width (mm): 150
Total length (mm): 232
Overall height (mm): 305
Dimensions (mm): 150 x 232 x 305
ULVAC DAT-50D
