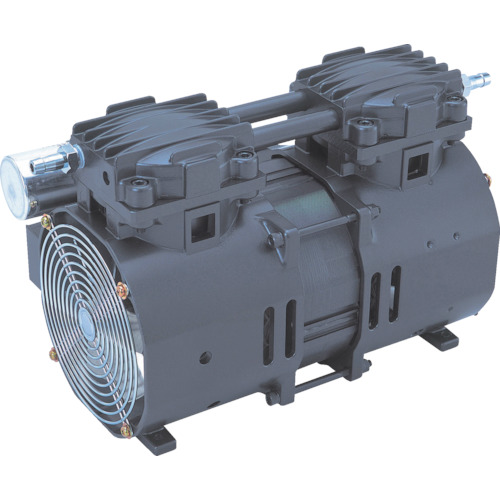

- This is a vacuum pump that exhausts air by reciprocating cup packing (special resin) inside the cylinder.
- This is a dry type vacuum pump that does not use oil or water in the gas contact parts.
- A type exclusively for pressure application is also available.
- Vacuum chuck, vacuum tweezers.
- Food packaging machines, vacuum forming machines.
- Suction transport.
- Vacuum suction transport for automated machines, etc.
- Vacuum packaging and printing machinery.
- Suction machine.
- Chip mounter.
Specifications in detail
Single stage exhaust system
Supports different voltages from a single unit
Exhaust speed (L/min) 50/60Hz: 80/88
Ultimate pressure (Pa): 5.33 x 10 (to the power of 3)
Intake diameter (mm): 9
Power supply (V): Single phase 100
Overall width (mm): 160
Total length (mm): 270
Height (mm): 179
Power cord length (m): 0.14
ULVAC DOP-80S
