Thông tin sản phẩm

  • Equipped with a gas ballast valve, forced oil supply mechanism, and oil backflow prevention mechanism.
  • The gas ballast valve removes moisture and other contaminants from the gas being sucked in, preventing them from dissolving in the pump oil.
  • This is a high-end model that further pursues the performance of the G series and has improved quietness, safety, and functionality.
  • It's small so it takes up little space.
  • Low noise, low vibration and low power consumption.
  • For physical and chemical experiments, analytical equipment, and laser application equipment.
  • Vacuum exhaust device, back of electron microscope.
  • Semiconductor manufacturing equipment, sputtering equipment, vacuum deposition equipment.
  • Vacuum dryer, freeze dryer.
Specifications in detail
Supports different voltages from a single unit
Exhaust speed (L/min) 50/60Hz: 50/60
Ultimate pressure (Pa): 0.67
Power supply (V): Single phase 100
Overall width (mm): 165.5
Total length (mm): 395
Overall height (mm): 222.5
Oil used: SMR-100
Power cord length (m): 2.0
Intake diameter: KF-25

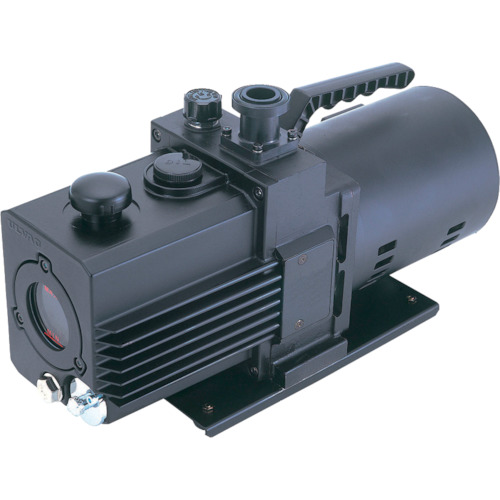

ULVAC GLD-051

ULVAC Việt Nam | ULVAC single phase 100V oil rotary vacuum pump MW3538745

Thương hiệu: ULVAC
Còn hàng
Liên hệ
Equipped with a gas ballast valve, forced oil supply mechanism, and oil backflow prevention mechanism. The gas ballast valve removes moisture and other contaminants from the gas being sucked in, preventing them from dissolving in the pump oil. This is a high-end model that further pursues the performance of the G series and has improved quietness, safety, and functionality. It's small so it takes up little space. Low noise, low vibration and low power consumption.
For physical and chemical experiments, analytical equipment, and laser application equipment. Vacuum exhaust device, back of electron microscope. Semiconductor manufacturing equipment, spu...
Xem thêm

Thông tin sản phẩm

  • Equipped with a gas ballast valve, forced oil supply mechanism, and oil backflow prevention mechanism.
  • The gas ballast valve removes moisture and other contaminants from the gas being sucked in, preventing them from dissolving in the pump oil.
  • This is a high-end model that further pursues the performance of the G series and has improved quietness, safety, and functionality.
  • It's small so it takes up little space.
  • Low noise, low vibration and low power consumption.
  • For physical and chemical experiments, analytical equipment, and laser application equipment.
  • Vacuum exhaust device, back of electron microscope.
  • Semiconductor manufacturing equipment, sputtering equipment, vacuum deposition equipment.
  • Vacuum dryer, freeze dryer.
Specifications in detail
Supports different voltages from a single unit
Exhaust speed (L/min) 50/60Hz: 50/60
Ultimate pressure (Pa): 0.67
Power supply (V): Single phase 100
Overall width (mm): 165.5
Total length (mm): 395
Overall height (mm): 222.5
Oil used: SMR-100
Power cord length (m): 2.0
Intake diameter: KF-25

ULVAC GLD-051
