- Equipped with a DC motor.
- Compact, lightweight, and long life.
- The two-stage exhaust system has a lower pressure (better vacuum) than the single-stage exhaust system.
- Dry type that does not use oil in gas contact parts
- Safe design with lock protection and overcurrent protection functions
- Can operate from atmospheric pressure
- Simple structure makes maintenance easy
- For medical and industrial equipment.
Specifications in detail
With lock protection and overcurrent protection functions
Exhaust speed (L/min) 50/60Hz: 9
Ultimate pressure (Pa): 6.65 x 10 (to the power of 3)
Intake diameter (mm): Rc1/8
Power supply (V): DC24
Overall width (mm): 83.5
Total length (mm): 165
Overall height (mm): 123.8
Power cord length (m): 1.8

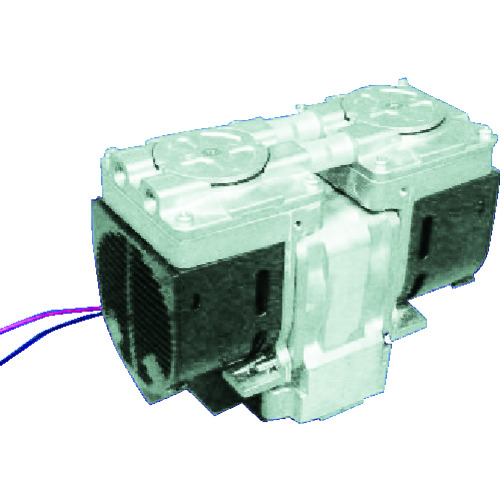

ULVAC DAP-9D-DC24
