- This is a dry type vacuum pump that does not use oil or water in the gas contact areas.
- It has a large displacement and a compact size.
- It can operate from atmospheric pressure.
- Vacuum suction transport for automated machines, etc.
- Vacuum packaging and printing machinery.
- Suction machine.
- Chip mounter.
Specifications in detail
Single stage exhaust system
CE self-declared product
TUV certified product
cTUVus certified product
Pumping speed (l/min) 50/60Hz: 300/330
Exhaust speed (L/min) 50/60Hz: 300/330
Ultimate pressure (Pa): 8.0 x 10 (to the power of 3)
Intake diameter (mm): 16
Power supply (V): Three-phase 200-230
Overall width (mm): 315
Total length (mm): 443
Height (mm): 231
Power cord length (m): None

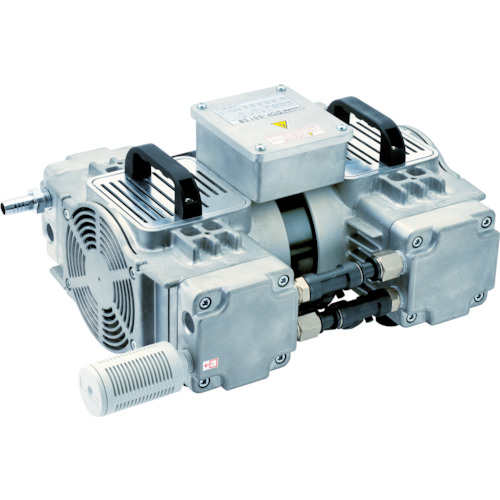

ULVAC DOP-301SB
