Features
- The amount of deformation is smaller than with the plate type, reducing fatigue for the operator.
- The dial scale can be rotated, so you can align the pointer with the set torque and complete the process at "0".
- The pointer is convenient for reading the maximum value.
Purpose
- For inspection and tightening.
Specifications in detail
Torque measurement range (N・m): 0.2 to 1.5
Minimum scale (N・m): 0.02
Overall length (mm): 204
Insertion angle (mm): 6.35
Load direction: Right, left
Torque accuracy: ±3%

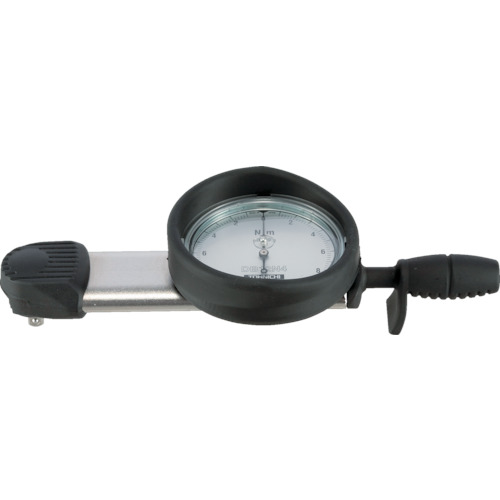

TOHNICHI DB1.5N4-S
