Features
- Equipped with left and right torque scales.
- Ideal for measuring minute torque in precision machinery, electronic devices, etc., as well as for assembly work.
- It can be used to measure the torque of a rotating body.
- The tip has a three-jaw chuck that securely clamps the object being measured.
- The dial scale rotates 270° left and right and has a stopper to prevent overload, so you can use it with peace of mind.
- There are also markings on the sides (with a needle) so it can be read from any position.
- Pressing the push lock button will lock the main body and chuck side together, making it easy to chuck the workpiece.
- Comes with a front pointer.
Purpose
- For inspection and tightening of small torque.
Specifications in detail
Torque range (m): 0.3 to 3 cN,
accuracy: ±2%
With stop needle
Measurement range (cN・m): 0.30 to 3.00
Minimum scale (cN・m): 0.05
Overall length (mm): 99
Outer diameter (mm): 43.5
Chuck range (mm): 1 to 6.5
Load direction: left and right
Torque accuracy: ±2%

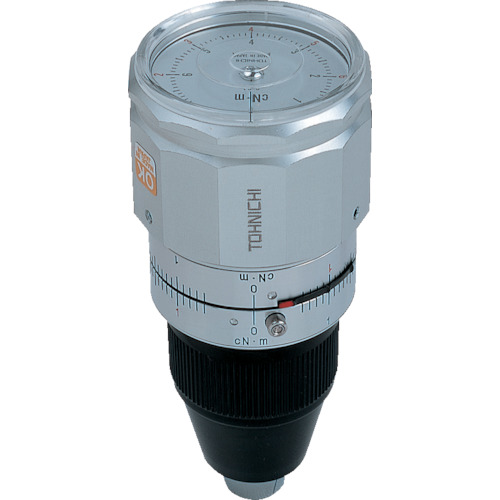

TOHNICHI ATG3CN-S
