Features
- Compatible with rotation angle method tightening.
- The angle count starts when the snug torque is reached, and when the preset value is reached, an alarm is issued with sound and light.
- It can store up to 1,000 data.
- The display uses a graphic organic EL, which provides excellent visibility and allows clear reading even in dark places.
- Once presets and tolerances are set, the pass/fail result will be displayed on the LED.
Purpose
- For tightening screws and inspecting tightened screws.
Specifications in detail
Measurement mode: A/Peak hold, B/Continuous peak hold, R/Continuous display
Operating temperature range (°C): +5 to 35 (no condensation)
Torque adjustment range (N・m): 5 to 50
Minimum scale (N・m): 0.01
Overall length (mm): 396
Socket size (mm): 9.53
Head width (mm): 32
Included head: Ratchet head 9.53 Sq.
Torque accuracy: Accuracy: ±1% + 1 digit
Load direction: Right/left
Power supply (V): Dedicated lithium-ion rechargeable battery (18650) x 1 (included)
Set contents: Lithium-ion battery 18650 (2600mAh 3.7V 9.62Wh), charger, charging adapter

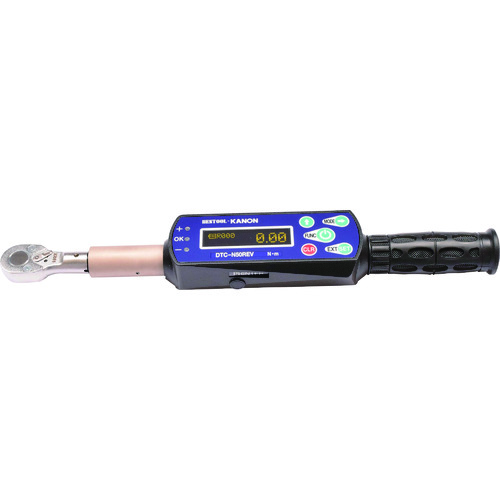

KANON DTC-N50REV-A
