- This is a differential pressure gauge equipped with a highly accurate differential pressure sensor.
- When combined with an L-type Pitot tube, it is possible to calculate wind speed and volume from differential pressure (dynamic pressure).
- It is ideal for measuring ducts in high wind speed areas (40 to 100 m/s), high temperatures (70°C and above), and those containing dust and mist.
- For measuring wind speed (flow velocity) in ducts containing dust and mist.
Specifications in detail
Recommended wind speed range: 5 to 100 m/s
Backlight, Hold function, Maximum/minimum value, Average (time/multiple points), Damping function, Auto-off, Sound alarm, Bluetooth printer (optional), Mobile app linkage, Wind speed/volume calculation
Measurement range (hPa): 0 to +200
Resolution (hPa): 0.001 (0~2.0hPa)/0.01(2.01~20.0hPa)/0.10(20.1~200.0hPa)
Width(mm):146
Depth(mm):60
Height (mm): 28
Measurement wind speed range (m/s): 5 to 100 (recommended)
Measuring air volume range (m3/h): 60
Pitot tube length (mm): 500

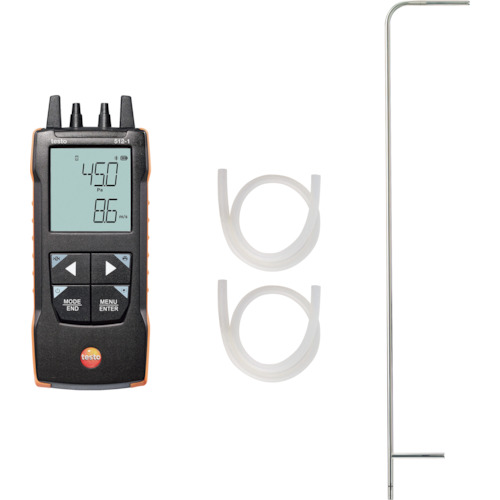

TESTO TESTO512-1 PITOTSET2
