- AC/DC clamp meter.
- Vertical opening and closing jaw type.
- Suitable for inrush current measurement.
- The TESTO770-2 and 770-3 also offer temperature measurement as an option.
- It measures the current in wires and conductors without contact.
- The jaws slide open vertically, making it easy and safe to clamp cables even in densely packed areas.
- For electrical maintenance equipment.
Specifications in detail
Detection method: Average value rectification (MEAN)
Maximum display: 4000 counts
Resistance range (Ω): 400 to 40MG
With maximum/minimum/average value display function
DC current (A): 400
AC current (A): 400
DC voltage (V): 600
AC voltage (V): 600
Resistance(Ω): 40M
Power supply (V): 3 AAA batteries (included)
Width(mm):95
Depth(mm):40
Height (mm): 250
Power supply: 3 AAA batteries (included)
AC/DC current range (A): 400
Accuracy (DC/AC): ±(2%rdg+5digit)
AC/DC voltage range (V): 4/40/400/600
Maximum measuring conductor diameter (mm): 32
Maximum display (count): 4000

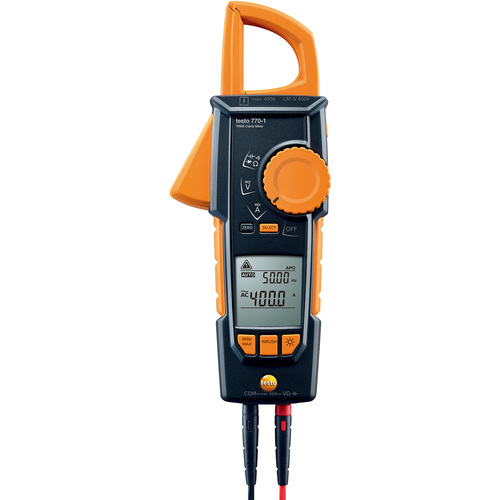

TESTO TESTO770-1
