Features
- This is a new generation sharp green (520nm) line with a luminosity of 500.
- Thanks to the sensor control system, the laser line does not shake much even in locations with a lot of vibration.
- Work can be done on four vertical lines, and multiple people can work simultaneously on a 360° horizontal line.
- Equipped with a rotary fine adjustment knob that allows precise manual alignment
- A tripod can be attached directly to the main unit.
- Lithium-ion rechargeable battery 7424, AA battery adapter box included
- Power can also be provided by an AC adapter (sold separately).
Purpose
- A laser level for setting reference points.
Specifications in detail
Wavelength: Line 520nm, Point 650nm
Visibility: 200 in Save Mode, 500 in Just Mode
Laser Safety Standard: Class 2M
4 vertical directions, 1 horizontal direction
Power:
Irradiation line accuracy: Within ±0.81mm at 10m
Arrival point distance accuracy: Within ±1mm at 7.5m
Vertical point accuracy: Within ±1mm at 3m Left
and right accuracy: Within ±2mm at 15m
Dustproof and waterproof performance: Dustproof and waterproof design
Vertical (mm): 212
Horizontal (mm): 126
Accuracy: ±0.81mm/10m
Automatic correction range: ±2°
Irradiation line: Full line
Braking method: Sensor (electronic two-axis sensor method)
Right angle accuracy: 90°± (2mm/7.5m)

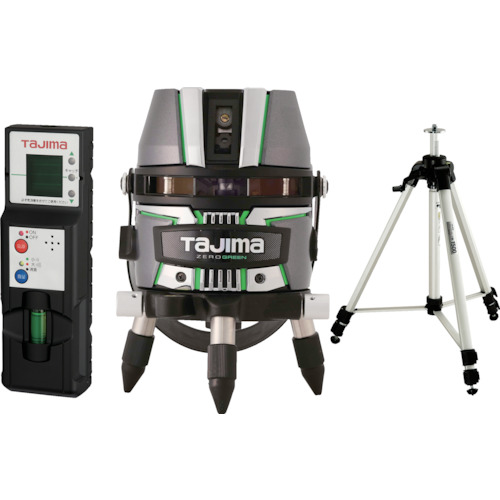

TAJIMA ZEROG2LS-KJCSET
