- This is a limit gauge for measuring joint groove angles and butt joint groove angles.

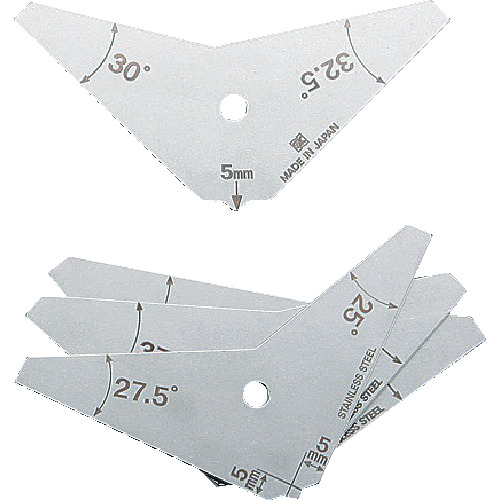

- Set of 4 gauge leaves.
- The leg length indicates the allowable limit dimension when the throat thickness is measured.
- Angle measurements are also possible.
- Can be used for post-weld measurements.
- Comes with a plastic case.
- Comes with a ball chain.
- For measuring joint groove angles and butt joint groove angles.
- For measuring the groove angle (inside) of T-joints, the groove angle (inside angle) of butt joints, the leg length (height) of fillet, and throat thickness.
Specifications in detail
Instrument error: ±0.1mm (length), ±1° (angle)
Length measurement accuracy (mm): ±0.1
Angle measurement error (°): ±1
Body scale graduations (mm): -
Extra height (mm): -
Fillet leg length (mm): 5, 7, 8, 10
Fillet throat thickness (mm): 4, 5, 6, 7
Root Spacing (mm): -
Bevel angle (°): 25/27.5, 30/32.5, 35/37.5, 40/42.5
Measurable angle (°): 25 to 42.5 (2.5° pitch)
Measurable throat thickness (mm): 4, 5, 6, 7
Measurable leg length (mm): 5, 7, 8, 10
Number of pieces: 4
SK WAL2542
