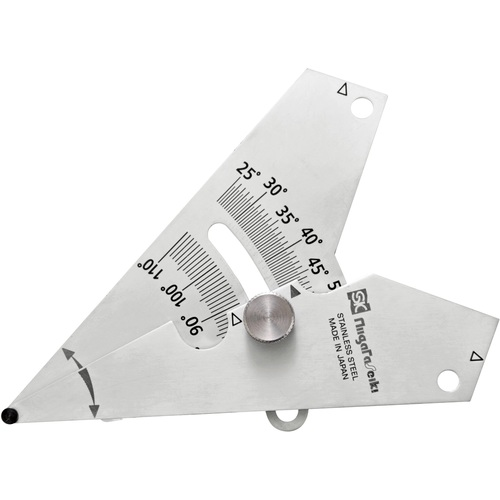

- This one tool allows direct measurement of weld joint groove angles.
- The sharp tip shape allows for root gaps of 0 mm and measurement of thin plates of 15 mm or less.
- It is also possible to measure the angle of a T-joint without overlay.
- The surface is silver finished.
- It is also possible to measure the angle of T-joints without having to worry about excess fillet.
- It has a non-reflective silver finish.
- It is robust, lightweight and easy to carry (plastic case included).
- For measuring groove angles of butt joints and angles of welded joints
- Measuring the angle of welded joints
Specifications in detail
Measurement of inclination after angle stud of joint: 70 to 110° (minimum reading 1°)
Minimum reading(°): 0.5
Angle measurement accuracy(°): ±0.5
Tilt of joint after welding angle stud (°): 70-110
Total length (mm): 117.5
Thickness(mm):1.5
Bevel angle: 25 to 65° (minimum reading 0.5°)
SK WGA-65
