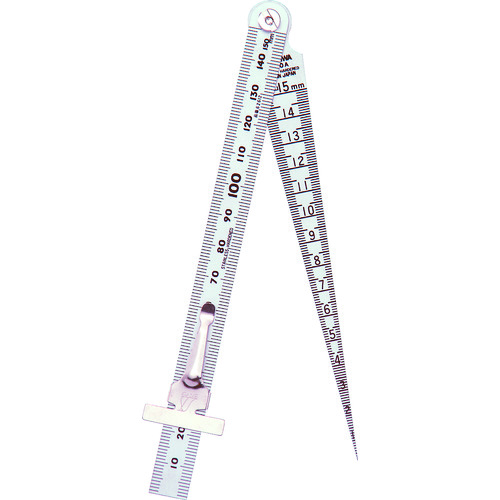

- The scale is etched and black chrome plated, so it is difficult to remove.
- This type comes as a set with a straight ruler and has a clip, making it convenient to carry.
- This is a hardened product (hardness HV400 or higher).
- There is an inner diameter correction table on the back.
- Simply insert it to easily measure inner diameters and gaps.
Specifications in detail
Length(mm):160
Measurement range (mm): 1 to 15 (taper gauge), 0 to 150 (straight scale)
Instrument error (mm): ±0.05 (taper gauge), ±0.15 (straight line)
Precision (mm): ±0.05
Thickness(mm):4.5
SHINWA 62612
