Features
- ●Can be used in a range of environments from clean rooms to general air environments. ●The real-time meter function can identify dust sources and check filter leaks, and can measure six particles simultaneously.
- ●PP8506-30 is a model that supports large particles of 0.5 to 30 micrometers. It also has a PM conversion function and displays the PM concentration conversion value (mg/m3). *We also provide rental services for PP8306 and PP8506-30.
Specifications in detail
Light source: Semiconductor laser
Number of measurement channels: 6
Minimum measurable particle size: 0.3 micrometers
Particle size range: 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 micrometers
Flow rate: 2.83 L/min (0.1 cfm)
Maximum particle number concentration: 15,000,000 particles/cf at 10% Coefficient of coincidence Loss
Data memory: 45,000 sample records
Output: USB/Ethernet
Specifications Temperature and humidity range: 5 to 40°C, 20 to 95% RH (no condensation)
Temperature and humidity sensor: Included
Display: 4.3 in WQVGA (480 x 272) color touch screen
Display language: English
Battery: Lithium-ion battery Model EE80003A 55Wh Continuous 10 hours Recharge time 4 hours (when attached to the main unit), 2 hours (when using an optional external charger)

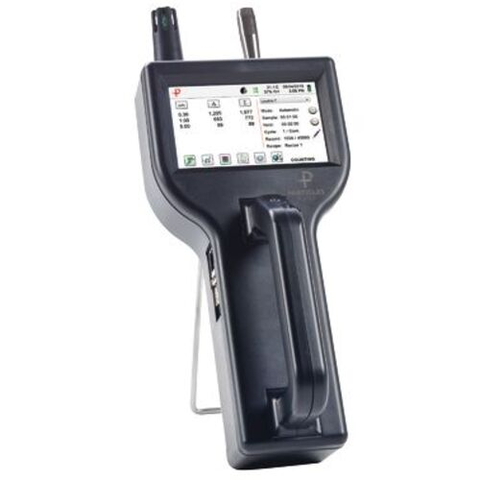

SHIN-EI PP8306
