Features
- By simply installing the dedicated app on your smartphone or tablet, you can not only display measurement results and transfer data, but also achieve work traceability, such as managing measurement history.
- Since the measurement is performed coaxially with the bolt, highly accurate torque measurements can be made with any tool, including wrenches of different lengths, flex types with variable handle angles, and driver-type handles.
Purpose
- For torque management of bolt tightening.
Specifications in detail
Measurement accuracy: ±4% +1digit
Measurement direction: Right-hand thread only
Measurement unit: N・m
Communication method: Bluetooth(R) 4.1
Torque adjustment range (N・m): 8-80
Minimum scale (N・m): 0.1
Overall length (mm): 75
Socket size (mm): 9.5
Width (mm): 42
Height (mm): 75
Power supply (V): Rechargeable lithium polymer battery
Load direction: Measurement direction / Right-hand thread only
Torque accuracy: ±4% +1digit
Guaranteed accuracy Torque range (N・m): 8-80

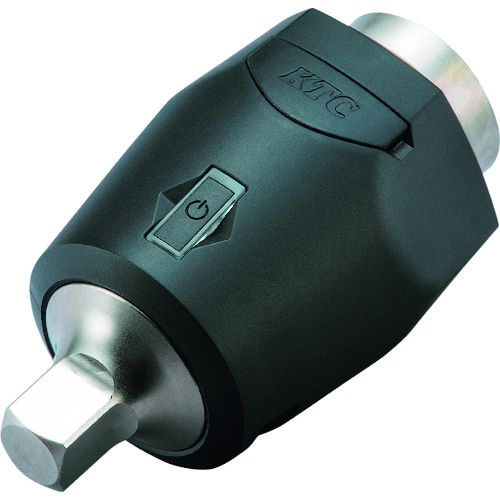

KTC GNA080-03
