Features
- This is a wrench-type pre-set torque wrench that can be used at a fixed torque value by determining the width across the face and the torque value.
- Ideal for repeated measurements with a fixed torque that matches the bolt (nut) two-face width during assembly.
- A metallic click will sound when tightening is complete, allowing anyone to safely tighten to the set torque.
Purpose
- For tightening the same bolts (nuts) with the same torque, such as in assembly line work.
Specifications in detail
This is a pre-set torque wrench that is used at a fixed torque value by determining the spanner width and torque value.
It is ideal for tightening multiple identical bolts (nuts) at the same torque value.
Torque adjustment range (N・m): 3.5 to 19
Overall length (mm): approx. 213
Width dimension (mm): 19
Torque setting range (N･m): 3.5 to 19.0
Spanner aperture (mm): 19.0
Torque accuracy: ±3%

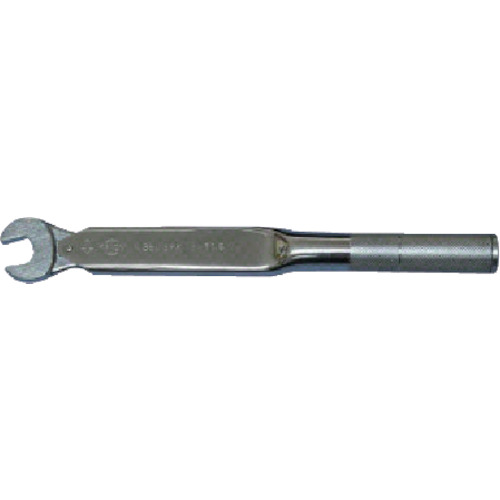

KANON N19SPK19
