Features

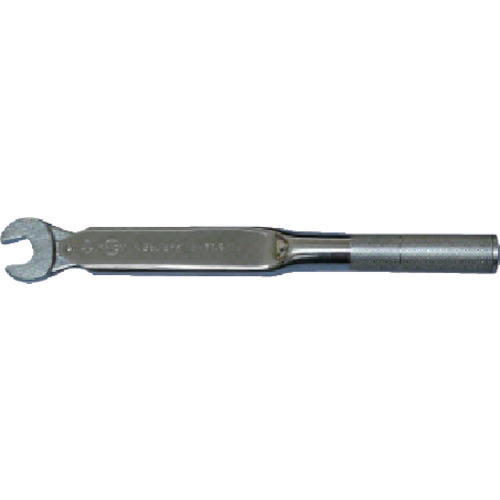

- This is a wrench-type preset torque wrench that can be used at a fixed torque value by determining the width across the face and torque value.
Purpose
- For tightening the same bolts (nuts) with the same torque, such as in assembly line work.
Specifications in detail
This is a pre-set torque wrench that can be used at a fixed torque value by determining the wrench width and torque value.
Ideal for tightening multiple identical bolts (nuts) at the same torque value.
Torque adjustment range (N･m): 13 to 67.
Overall length (mm): Approx. 319.
Width
across flats (mm): 17. Torque setting range (N･m): 13.0 to 67.0.
Spanner diameter (mm): 17.0.
Torque accuracy: ±3%.
KANON N67SPK17
