- Low starting resistance makes it easy to handle.
- Uses special rubber that has low starting resistance, durability and abrasion resistance.
- It is expected to be effective in improving the working environment and reducing back pain.
- Ideal for roll boxes (cage cars) used in logistics and distribution centers.
Specifications in detail
Plate Type
Swivel type (with stopper)
Wheel diameter D(mm): 150
Type: Swivel (with stopper)
Allowable load (daN): 196
Allowable load (kgf): 200
Wheel width(mm):35
Mounting height H(mm): 191
Mounting seat A(mm): 102
Mounting seat B(mm): 102
Mounting pitch X(mm): 75-80
Mounting pitch Y(mm): 75-80
Mounting hole diameter P(mm): 11
Boss width B(mm): 53
Color: Black
Shaft diameter (mm): 12

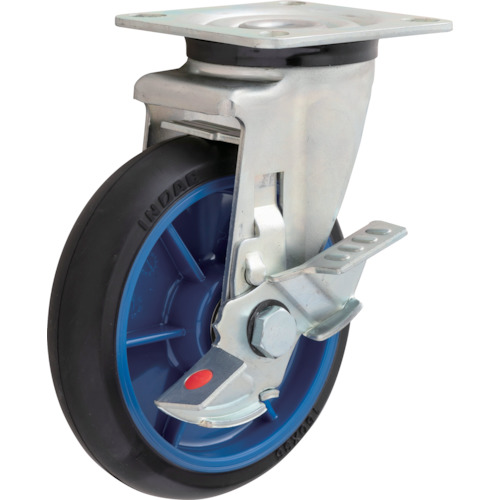

INOAC LR-150WJB-BK
