- The lock pedal has been enlarged to make it easier to step on when wearing safety shoes.
- The arm and lock pedal are integrated, so there will be no wobbling even after long-term use.
- Safety is improved by rounding the corners of each pedal through a drawing process, and the notches in the plate prevent safety shoes from getting pinched.
- Stopper for carts with casters.
Specifications in detail
Applicable wheels (mm): 150
Allowable load (daN): 294
Allowable load (kgf): 300
Maximum load capacity (kg): 300
Suitable mounting height (mm): 202
Minimum height (mm): 170
Maximum height (mm): 210
Stroke (mm): 40
Mounting base (mm): 120 x 120
Mounting pitch (mm): 85-100 x 85-100

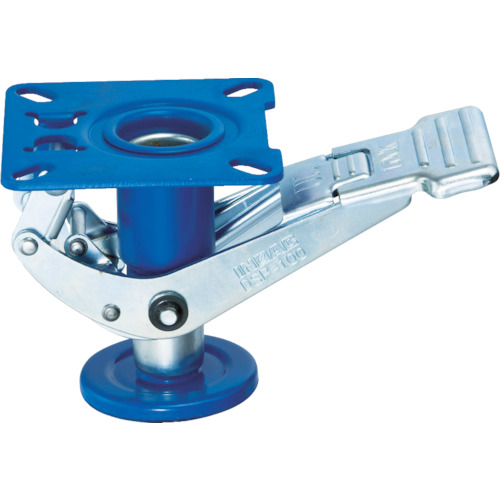

INOAC DSP-150
