- The lock pedal has been enlarged to make it easier to step on when wearing safety shoes.
- The arm and lock pedal are integrated, so there will be no wobbling even after long-term use.
- Safety is improved by rounding the corners of each pedal through a drawing process, and the notches in the plate prevent safety shoes from getting pinched.
Specifications in detail
Applicable wheels (mm): 200
Allowable load (daN): 343
Allowable load (kgf): 350
Maximum load capacity (kg): 350
Suitable mounting height (mm): 242
Minimum height (mm): 200
Maximum height (mm): 248
Stroke (mm): 48
Mounting base (mm): 120 x 120
Mounting pitch (mm): 85-100 x 85-100

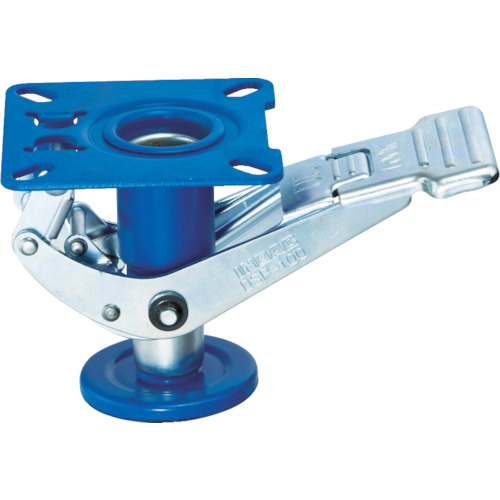

INOAC DSP-200
