- The rubber part has excellent abrasion resistance and can withstand towing at a maximum speed of 10 to 20 km/h.
- It is easy to handle and can easily transport heavy objects even when pushed by hand.
- In order to withstand the impact loads caused by bumps, the rubber in the tire area has been made thicker to improve shock absorption.
- Caster for towing dolly.
- Ideal for towing dollies that run in conjunction with each other.
Specifications in detail
Fixed
Plate Type
Wheel diameter D(mm): 200
Type: Fixed
Allowable load (daN): 245
Allowable load (kgf): 250
Wheel width(mm): 45
Mounting height H(mm): 250
Mounting seat A(mm): 151
Mounting seat B(mm): 102
Mounting pitch X(mm): 105-112
Mounting pitch Y(mm): 55-63
Mounting hole diameter P(mm): 11.5

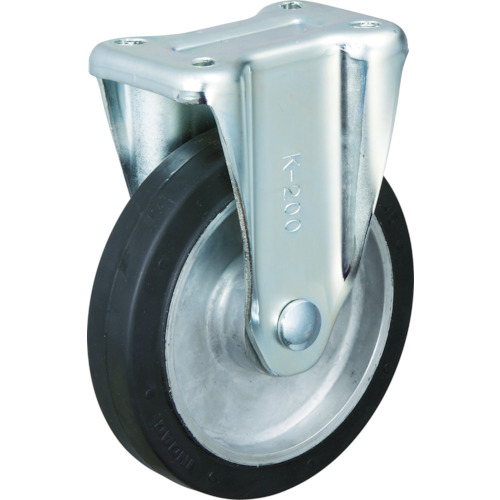

INOAC TR-200AWK
