Features
- This is a general-purpose tap that is used in a wide range of applications.
- The cutting edge strength is increased.
- It is easy to regrind.
Purpose
- Work material: medium carbon steel.
Specifications in detail
Tip: Top
Precision: P5
Precision notation: P class
Nominal size: M36
Pitch (mm): 4
Thread length (mm): 52
Total length (mm): 155
Shank diameter (mm): 28
Shank square section (mm): 21 Pilot
hole diameter (mm): 32.1
Machined thread: Metric thread
Surface treatment: Non-coated
Number of grooves: 4
Number of teeth: 1.5 Shank
length (mm): 71
Length of square section (mm): 24

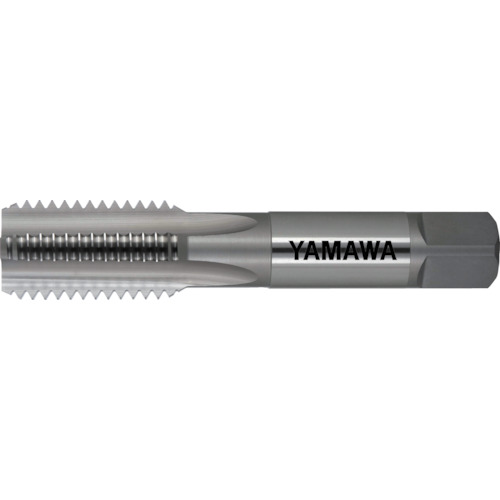

YAMAWA HTP-M36X4-3
