- Designed so that hose clamps are not required.
- One-touch connection method.
- Safety lock mechanism comes as standard.
- Made of engineering plastic, it has excellent impact resistance.
- Made of plastic, it is lightweight and rust-proof.
- Various air piping.
- Automotive, food and other industries.
- Various equipment and equipment piping, etc.
- Pneumatic tools, pneumatic equipment.
Specifications in detail
Fluid temperature: 0 to 50°C
Normal pressure: 0 to 1.0 MPa
Pressure resistance (MPa): 1.0
Mating hose size (mm): 8.0 x 12.0
Maximum operating pressure (MPa): 1.0
Fluid used: Air
Hexagonal nut (mm): 22
Hexagonal width (mm) Body: 24
Operating temperature (℃): 0 to 50

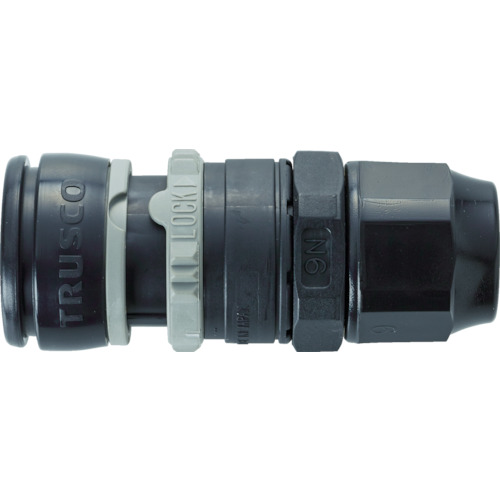

TRUSCO TRS-N8NR
