Features
- Great flexibility.
- Ideal for general pneumatic piping that requires a small bending radius.
- Cut marks are provided at 500mm intervals to help you when cutting the tube.
Note
- Do not apply loads such as tension, twisting, or extreme bending to the tube, as this may cause the tube to collapse, burst, or come loose.
- Do not scratch or tangle the tube as this may cause the tube to burst.
- The tube's bursting pressure decreases as the temperature rises, so be sure to understand the operating pressure and ensure that you have a sufficient safety margin.
- Use the tube with a minimum bending radius or greater.
- When installing the tubes, leave sufficient slack to allow for changes in length, etc.
Specifications in detail
Maximum operating pressure: 1.0MPa (at 20℃ 65%RH)
Vacuum pressure: -100kPa
Operating temperature range: -15 to 60℃ (water, no freezing), -20 to 70℃ (air, no freezing)
Made in ISO9001 certified factory Made in
ISO14001 certified factory
Color: Black
Outer diameter (mm): 16
Inner diameter (mm): 11
Minimum bending radius (mm): 60
Total length (m): 20
Fluid used: Air, water (conditions apply)
Total length (mm): 20
Wall thickness (mm): 2.5
Tube outer diameter (φD) (mm): φ16
Tube inner diameter (φD) (mm): φ11
Minimum mounting radius (mm): 90

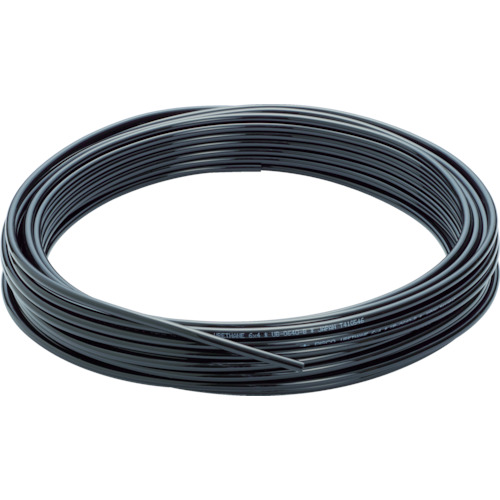

PISCO UB1611-20-B
