Features
- Used to create and clean screw holes.
- For repairing and creating normal threads.
Purpose
- Workpiece materials: iron, light metals.
- Repairing and creating screw threads.
Specifications in detail
Tip: Medium
Precision: JIS Class 3
Precision notation: JIS Class 3
Nominal size: M36
Pitch (mm): 4
Thread length (mm): 75
Overall length (mm): 155
Shank diameter (mm): 28
Shank square section (mm): 21
Pilot hole diameter (mm): 32.0
Machined thread: Metric thread
Surface treatment: Non-coated

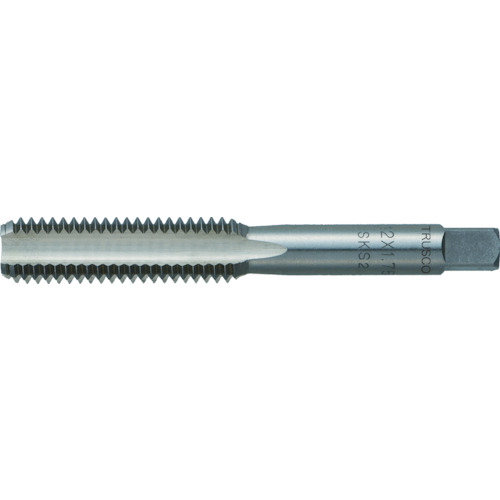

TRUSCO T-HT36X4.0-2
