- The rotating section uses double ball race bearings, which ensure smooth movement and excellent durability.
- The tires are non-marking.
- The wheels are rounded, which reduces the contact area with the floor and reduces resistance, making it easy to operate.
Specifications in detail
Plate Type
Swivel type (with total lock)
Wheel diameter D(mm): 200
Type: Swivel type (with total lock)
Allowable load (daN): 343
Allowable load (kgf): 350
Wheel width(mm):50
Mounting height H(mm): 240
Mounting seat A(mm): 137
Mounting base B(mm): 105
Mounting pitch X(mm): 105
Mounting pitch Y(mm): 80/75
Mounting hole diameter P(mm): 11

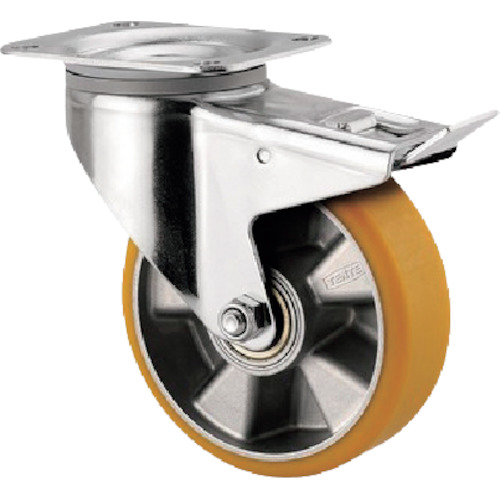

TENTE 3477ITP200P63 CONVEX
