- The body is made of high-performance resin.
- Since precision ball bearings are used in the rotating section, the rotation resistance is very small, making it excellent for starting and rotating start-up.
- It is maintenance-free and does not require grease injection.
- The tires are non-marking.
Specifications in detail
Free-standing
Plate Type
Precision ball bearings included
Wheel diameter D(mm): 125
Type: Free-standing
Allowable load (daN): 127.4
Allowable load (kgf): 130
Wheel width(mm):82
Mounting height H(mm): 149
Mounting seat A(mm): 137
Mounting base B(mm): 105
Mounting pitch X(mm): 105
Mounting pitch Y(mm): 80-75
Mounting hole diameter P(mm): 11
Color: Gray

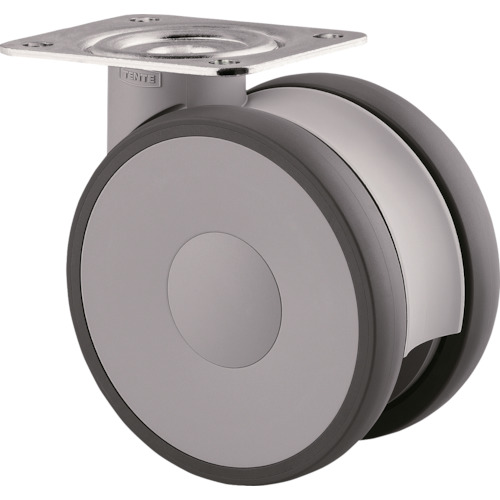

TENTE 5940UAP125P63
