- The rotating section uses double ball race bearings, which ensure smooth movement and excellent durability.
- The tires are non-marking.
- The wheels are rounded, which reduces the contact area with the floor and reduces resistance, making it easy to operate.
Specifications in detail
Plate Type
Swivel type (with total lock)
Wheel diameter D(mm): 100
Type: Swivel type (with total lock)
Allowable load (daN): 245
Allowable load (kgf): 250
Wheel width(mm): 40
Mounting height H(mm): 128
Mounting seat A(mm): 105
Mounting base B(mm): 85
Mounting pitch X(mm): 80/77
Mounting pitch Y(mm): 60
Mounting hole diameter P(mm): 9

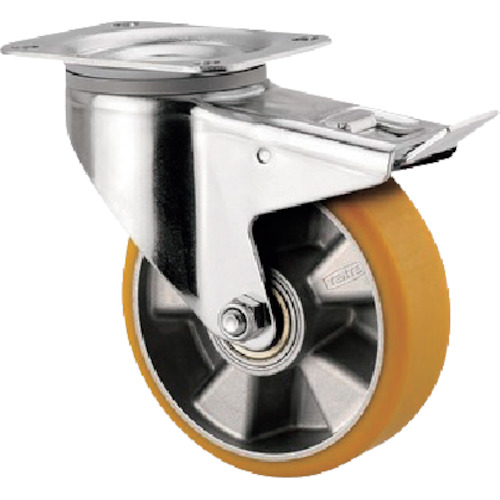

TENTE 3477ITP100P62 CONVEX
