- The rotating section uses double ball race bearings, which ensure smooth movement and excellent durability.
- The tires are non-marking.
- The wheels are rounded, which reduces the contact area with the floor and reduces resistance, making it easy to operate.
Specifications in detail
Plate Type
Fixed
Wheel diameter D(mm): 100
Type: Fixed
Allowable load (daN): 245
Allowable load (kgf): 250
Wheel width(mm): 40
Mounting height H(mm): 128
Mounting seat A(mm): 105
Mounting base B(mm): 85
Mounting pitch X(mm): 80/77
Mounting pitch Y(mm): 60
Mounting hole diameter P(mm): 9

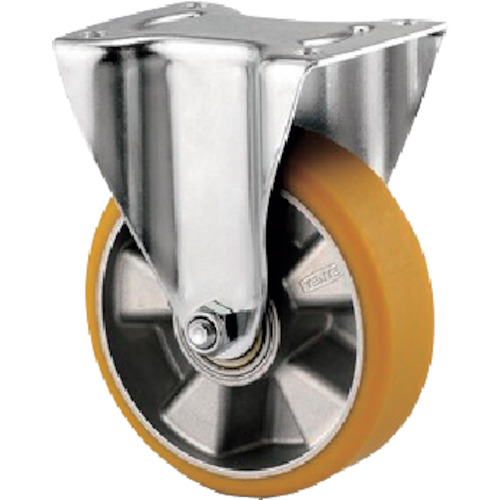

TENTE 3478ITP100P62 CONVEX
