- The body is made of high-performance resin.
- It is dust-resistant and comes with a thread guard that prevents debris from getting caught.
- The tires are non-marking.
- Only the rotating part can be locked, allowing for directional control (1 x 360°).
- It won the Universal Design Award (2009).
Specifications in detail
Plate Type
Free-standing (with directional lock)
Double ball bearings included
Wheel diameter D(mm): 100
Type: Swivel (with directional lock)
Allowable load (daN): 98
Allowable load (kgf): 100
Wheel width(mm):32
Mounting height H(mm): 137
Mounting seat A(mm): 77
Mounting base B(mm): 67
Mounting pitch X(mm): 61.5/56
Mounting pitch Y(mm): 51.5/46.5
Mounting hole diameter P(mm): 8.5

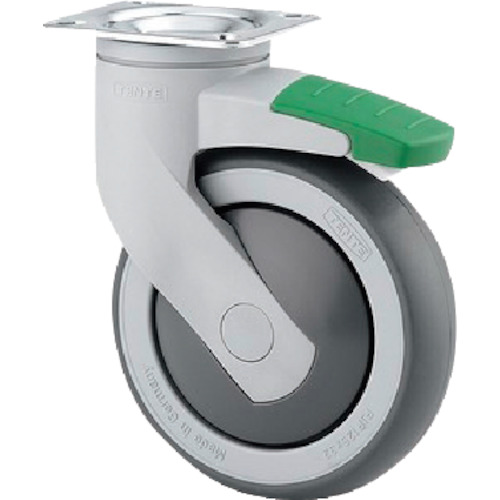

TENTE 5371PJP100P50
