Features
- It is small and lightweight.
- Space saving has been achieved.
- The plastic silencer has been refreshed and made more compact.
Applications
- Reduces exhaust noise from pneumatic equipment.
Specifications in detail
Operating pressure: 1.0MPa
Fluid temperature: 5 to 60°C
Volume reduction (dB): 30
Effective cross-sectional area ((MM2): 10
Connection diameter: NPT1/8
Total length (mm): 23.0
Operating pressure (MPa): 1
Fluid used: Compressed air

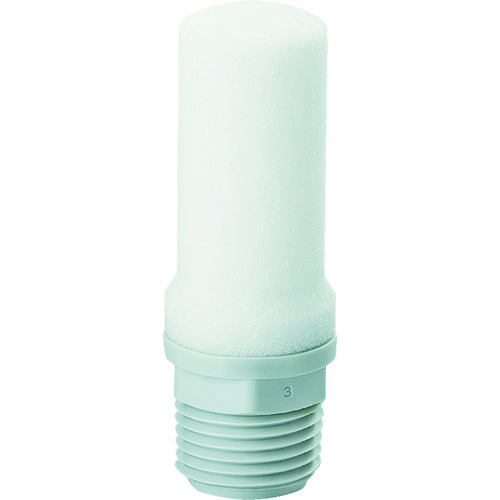

SMC AN10-N01
