Features
- It is small and lightweight.
- Space saving has been achieved.
- The plastic silencer has been refreshed and made more compact.
Applications
- Reduces exhaust noise from pneumatic equipment.
Specifications in detail
Fluid temperature (℃): 5 to 60℃
Volume reduction (dB): 30
Effective cross-sectional area ((MM2): 90
Connection diameter: R1/2
Total length (mm): 68.0
Operating pressure (MPa): 1
Fluid used: Compressed air
Connection diameter (inch): R1/2
Outer diameter (mm): 24

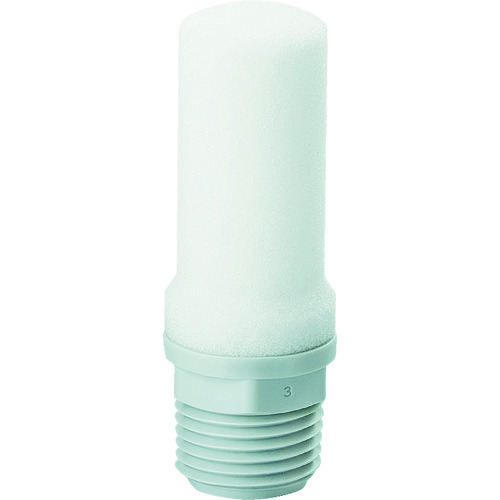

SMC AN40-04
