Features
- It is small and lightweight.
- Space saving has been achieved.
- The plastic silencer has been refreshed and made more compact.
Applications
- Reduces exhaust noise from pneumatic equipment.
Specifications in detail
Operating pressure: 1.0MPa
Fluid temperature: 5-60℃
Volume reduction (dB): 30
Effective cross-sectional area ((MM2): 15
Connection diameter: R1/4
Total length (mm): 32.0
Operating pressure (MPa): 1
Fluid used: Compressed air
Outer diameter (mm): 16

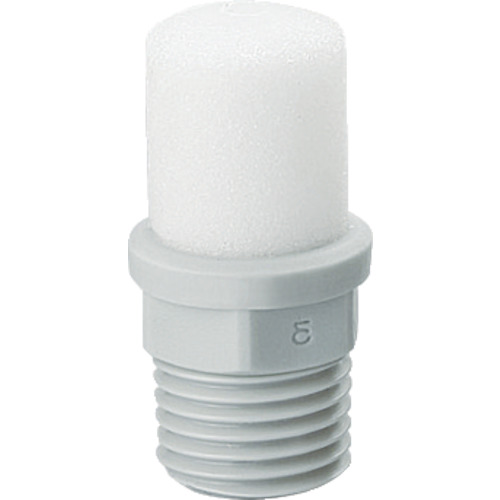

SMC AN15-02
