Features

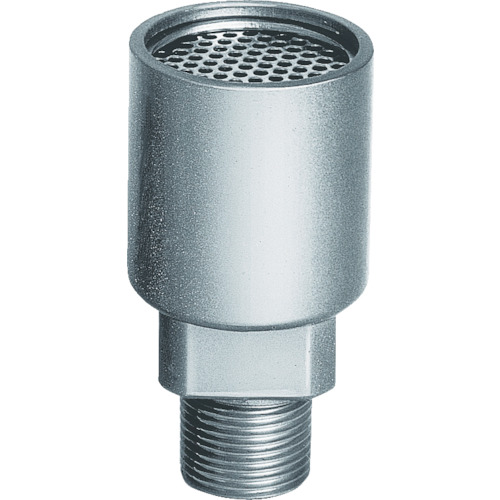

- Metal case type.
- Prevents exhaust mist and sound from scattering in all directions.
Applications
- Reduces exhaust noise from pneumatic equipment.
Specifications in detail
Fluid temperature (℃): 5 to 60℃
Reduction in volume (dB): 19
Effective cross-sectional area ((MM2)): 45.9
Connection diameter: R3/8
Total length (mm): 64.0
Operating pressure (MPa): 1
Connection diameter (mm): 3/8
Operating temperature (℃): 5 to 60
Fluid used: Compressed air
Connection diameter (inch): R3/8
Outer diameter (mm): 30
SMC 2505-003
