Features

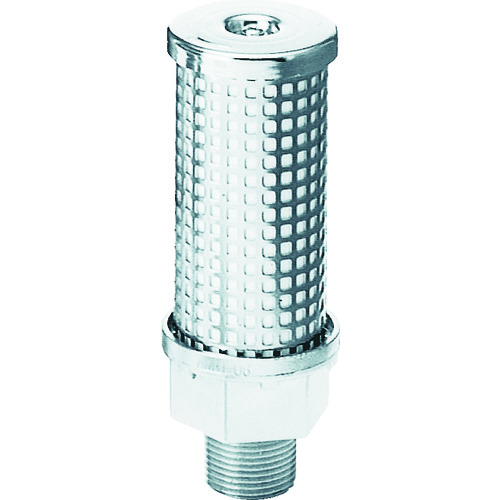

- This is a high-noise reduction type silencer for collective exhaust such as manifolds.
Specifications in detail
Fluid temperature (℃): 5 to 60℃
Reduction volume (dB): 38
Effective cross-sectional area ((MM2)): 280
Total length (mm): 190
Operating pressure (MPa): 1
Operating temperature (℃): 5 to 60
Fluid used: Air
Connection port size (inches): R1
Compatible one-touch pipe fitting size (mm): -
Effective cross-sectional area (mm2): 280
SMC ANB1-10
