Features
- In addition to the main body, the release ring is also made of brass, making it flame retardant and spatter resistant.
- The covered type prevents spatter, dust, etc. from entering the inside of the fitting.
Note
- If the fluid used is thermal oil, the thermal oil may adhere to the release ring and guide ring and solidify, causing sliding problems and interfering with the release or locking functions. When using the product, please make sure that there is no thermal oil on the release ring or guide ring. Also, when reconnecting the tube, please make sure that the tube will not come loose before using it.
Specifications in detail
Operating temperature range: 0 to 100°C (no freezing)
Maximum operating pressure: 1.0MPa
Vacuum pressure: -100kPa
Applicable tube outer diameter (mm): 12
Connection port size: R3/8
Hexagonal side (mm): 8
Maximum operating pressure (MPa): 1.0
Fluid used: Air, water (conditions apply), heat transfer oil (conditions apply)
Applicable tube outer diameter D (mm): 12
Vacuum pressure used (kPa): -100

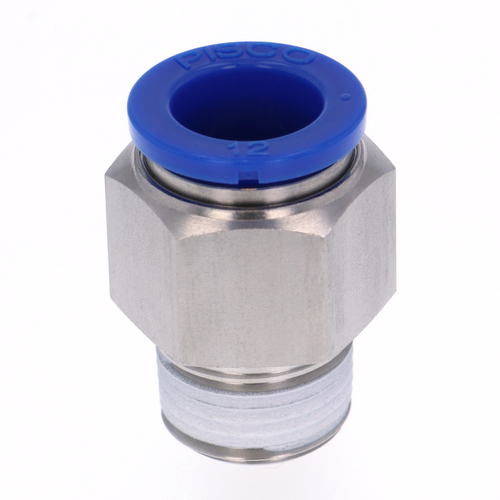

PISCO KOC12-03
