- The oil-free specifications meet the needs of a wide range of fields.
- The metal material used is SUS304, and the seal material is EPDM.
- The resin body color is clear (semi-transparent), making it possible to check the fluid (liquid).
- It is also easy to check hygiene.
- There is no exposed metal in the liquid contact area. (Thread material: SUS304 excluded.)
- If the thread material is PP, the mass is less than half that of a standard fitting.
Specifications in detail
Operating temperature range: 0 to 80°C (no freezing)
Maximum operating pressure: 1.0MPa (0 to 20℃)
Vacuum pressure used: -100kPa
Applicable tube outer diameter D(mm): 6
Connection size: R1/8
Hexagonal width (mm): 12
Maximum operating pressure (MPa): 1
Operating temperature range (℃): 0 to 80 (no freezing)
Fluids used: Air, water (conditions apply), others (conditions apply)

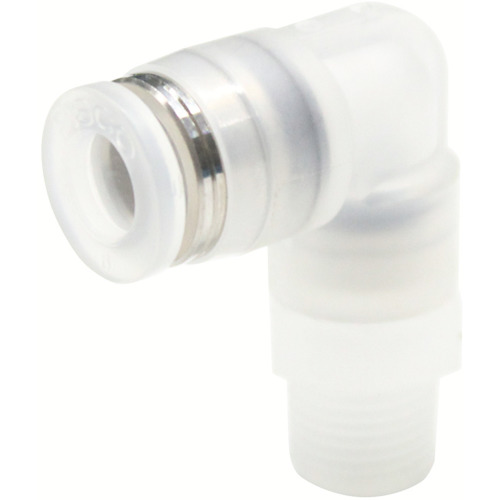

PISCO PPL6-01
