Features
- In addition to the main body, the release ring is also made of brass, making it flame retardant and spatter resistant.
- This is a type without a cover.
- If you are using the product in an environment other than spatter-resistant (such as piping for mold cooling water), we recommend a type without a cover.
Note
- If the fluid used is thermal oil, the thermal oil may adhere to the release ring and guide ring and solidify, causing sliding problems and interfering with the release or locking functions. When using the product, please make sure that there is no thermal oil on the release ring or guide ring. Also, when reconnecting the tube, please make sure that the tube will not come loose before using it.
Specifications in detail
Operating temperature range: 0 to 100°C (no freezing)
Maximum operating pressure: 1MPa
Vacuum pressure: -100kPa
Applicable tube outer diameter (mm): 12
Connection port size: R3/8
Hexagonal face size (mm): 21
Maximum operating pressure (MPa): 1.0
Fluid used: Air, water (conditions apply), heat transfer oil (conditions apply)
Applicable tube outer diameter D (mm): 12
Vacuum pressure (kPa): -100

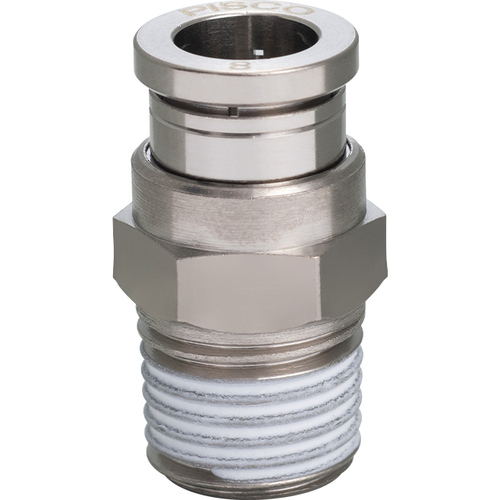

PISCO KC12-03-1
