Features
- In addition to the main body, the release ring is also made of brass, making it flame retardant and spatter resistant.
Specifications in detail
Connection diameter: R3/8
Hexagonal facet (mm): 21
Maximum operating pressure (MPa): 1.0
Operating fluid: air, water (conditions apply), heat transfer oil (conditions apply)
Operating pressure: 1MPa
Applicable tube outer diameter D (mm): 12
Operating temperature range (℃): 0 to 120 (no freezing)

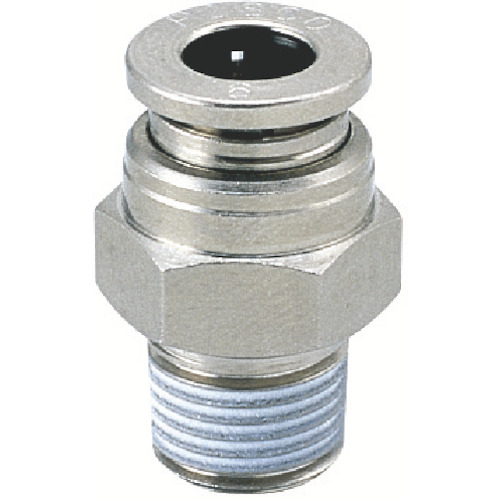

PISCO KC12-03-1-F
