Features
- Ideal for use in corrosive environments where strength is required.
- The metal body is made of special stainless steel with corrosion resistance equivalent to SUS303.
- No copper-based metals are used.
- The seal rubber material used is HNBR as a countermeasure against low concentration ozone.
Specifications in detail
Operating temperature range: 0 to 60°C (no freezing)
Maximum operating pressure: 1.0MPa
Vacuum pressure: -100kPa
Applicable tube outer diameter (mm): 12
Connection port size: R3/8
Hexagonal diagonal (mm): 21
Maximum operating pressure (MPa): 1.0
Fluid used: Air, water (conditions apply)
Applicable tube outer diameter D (mm): 12
Operating temperature range (°C): 0 to 60 (no freezing)

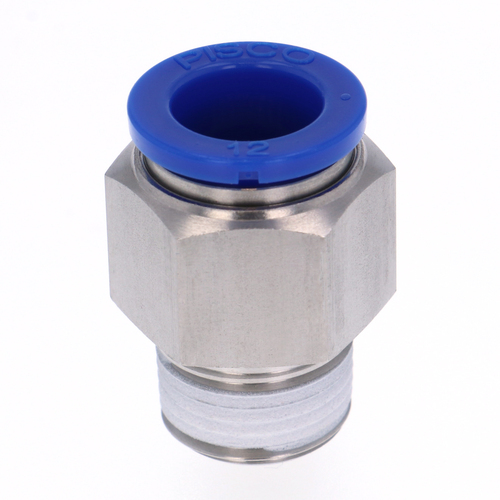

PISCO SPC12-03
