OrderID | LxBxT | Số răng kết hợp | OrderID | LxBxT | Số răng kết hợp |
mm | mm | ||||
324620.0100 | 2450x27x0.9 |
|
3660x27x0.9 | 3660 x 27 x 0.9 |
3-4 |
324620.0200 | 2450x27x0.9 | 4-6 | 324620.2400 | 3660x27x0.9 | 4-6 |
324620.0300 | 2500x27x0.9 | 3-4 | 324620.2600 | 3700x27x0.9 | 4-6 |
324620.0400 | 2500x27x0.9 | 4-6 | 324620.2700 | 3800x27x0.9 | 3-4 |
324620.0900 | 2825x27x0.9 | 3-4 | 324620.2800 | 3800x27x0.9 | 4-6 |
324620.1000 | 2825x27x0.9 | 4-6 | 324620.3000 | 3900x27x0.9 | 4-6 |
324620.1500 | 2945x27x0.9 | 3-4 | 324620.3100 | 4020x27x0.9 | 3-4 |
324620.1600 | 2945x27x0.9 | 4-6 | 324620.3400 | 4150x27x0.9 | 4-6 |
324620.1700 | 3200x27x0.9 | 3-4 | 324620.4200 | 4570x34x1.1 | 3-4 |
324620.1800 | 3200x27x0.9 | 4-6 | 324620.4300 | 4570x34x1.1 | 4-6 |
324620.1900 | 3505x27x0.9 | 3-4 | 324620.4400 | 4800x34x1.1 | 2-3 |
324620.2000 | 3505x27x0.9 | 4-6 | 324620.4700 | 4860x34x1.1 | 2-3 |
324620.2200 | 3580x27x0.9 | 4-6 | 324620.4800 | 4860x34x1.1 | 3-4 |

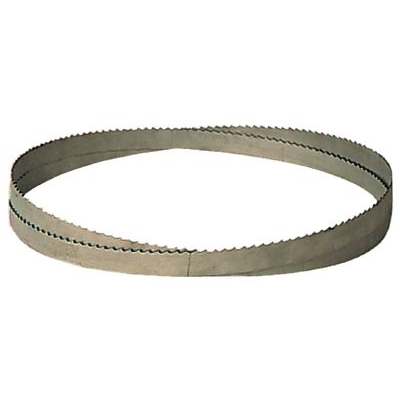

324620 Metal band saw blade WESA
High-performance bi-metal bandsaw blade made of HSS-M51, welded machine-ready.
Application
A powerful bandsaw blade for hard-to-cut materials such as copper, nickel, titanium, Hastelloy and stainless steels up to 45 HRc.
Toothing
2 / 3 teeth per inch
For solid material of Ø 150-400 mm. Also for bundle and layer cuts with a cutting width of 150-
360 mm.
3 / 4 teeth per inch
For solid material and bundle cuts of Ø 80-200 mm. All-purpose bandsaw blade for production.
4 / 6 teeth per inch
For solid material of Ø 50-100 mm, insensitive to tooth breakage. Alternating sets of teeth of different tooth pitch allow sawing of large cross-sections without changing the blade.
